QF - 820 HYDRAULIC PUNCHING VERTICAL

QF - 820 HYDRAULIC PUNCHING VERTICAL Specification

Manufacturing Year
2009 Years

Voltage
380V / 50Hz Volt (v)

Dimension (L*W*H)
1100 x 900 x 1700 mm Millimeter (mm)

Feature
Vertical Hydraulic Punching

Output
High Precision Punching

Used For
SHAPE CUTTING

Capacity
20 tons Ton

Color
Blue / Grey

Condition
Used

Machine Type
BINDING MACHINE

Weight
Approx. 750 kg Kilograms (kg)

Safety Features
Overload Protection, Emergency Stop

Noise Level
<75 dB

Punching Speed
15 Strokes/min

Application Areas
Electrical Enclosures, Sheet Metal Fabrication

Throat Depth
250 mm

Oil Pressure
Max. 210 bar

Frame Material
Heavy Duty Steel

Hydraulic Oil Capacity
60 Litres

Maximum Punching Thickness
Up to 8 mm (Sheet Metal)

Standard Accessories
Die Sets, Foot Pedal, Hydraulic Oil

Control Type
Push Button / Pedal Operated

QF - 820 HYDRAULIC PUNCHING VERTICAL Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Year

Delivery Time
1 Week

About QF - 820 HYDRAULIC PUNCHING VERTICAL

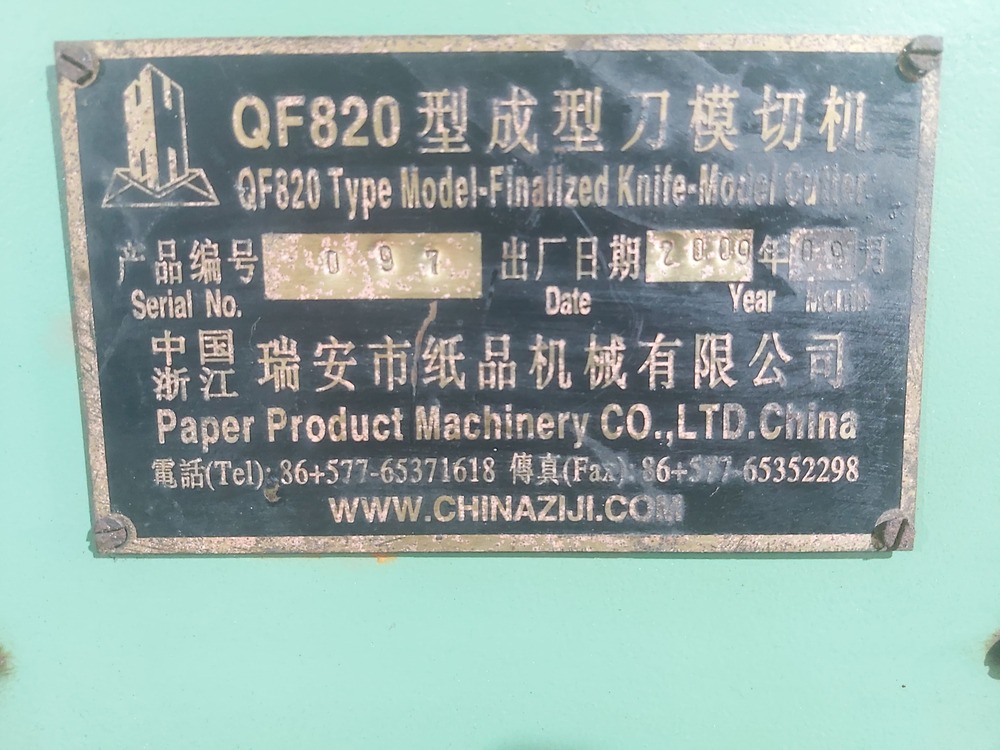

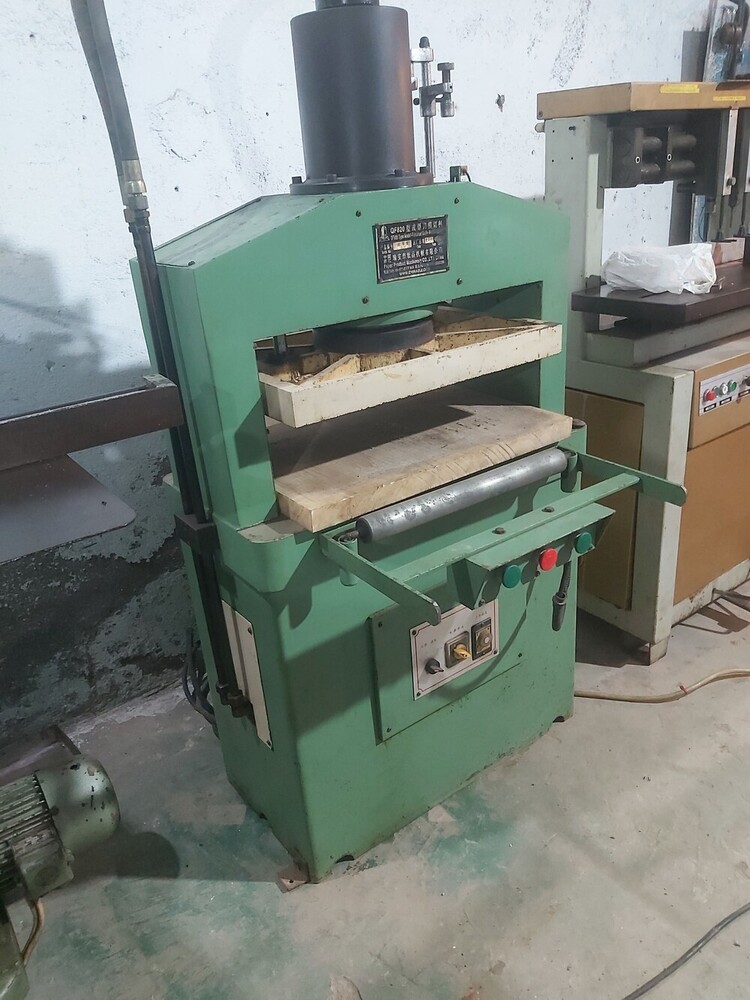

QF - 820 HYDRAULIC PUNCHING VERTICAL

SIZE - 16" X 24"

COUNTRY ORIGIN - CHINA

BRAND - RUIAN

Y.O.M. - 2009

SERIAL NO. - 097

MACHINE SPECIALLY USED FOR SHAPE CUTTING OF ENVELOPE BY MEANS OF DYE

PRESSURE OF APPROXIMATELY 40 TONS (HYDRAULIC) PRESSURE.

Advanced Hydraulic Punching Technology

The QF - 820 Vertical Hydraulic Punching machine employs a powerful hydraulic system, delivering up to 210 bar oil pressure and a punching speed of 15 strokes per minute. Its vertical design enhances workspace efficiency and ensures accurate, high-quality punching results on diverse metal sheets.

Robust Design and Safety Features

Manufactured using heavy-duty steel, this machine is engineered for durability and stability. Integrated safety features, such as overload protection and emergency stop, safeguard operators during continuous industrial operation. The noise level remains below 75 dB, supporting comfortable work environments.

Versatile Usage Across Industries

The QF - 820 is suitable for varied production environments, including electrical enclosure manufacturing and general sheet metal fabrication. Its high capacity, precision output, and compatibility with standard die sets make it an essential choice for exporters, importers, manufacturers, suppliers, and traders.

FAQs of QF - 820 HYDRAULIC PUNCHING VERTICAL:

Q: How is the QF - 820 Hydraulic Punching Vertical operated?

A: The machine can be operated using either the push button control panel or the included foot pedal, giving users flexibility in controlling the punching process with ease and safety.

Q: What is the maximum sheet metal thickness suitable for punching?

A: This hydraulic punching machine is designed to handle sheet metal up to 8 mm thick, ensuring robust and high-precision punching for various fabrication needs.

Q: Where can the QF - 820 be used effectively?

A: It is highly effective in environments such as sheet metal fabrication workshops, electrical enclosure manufacturing, and industrial facilities requiring shape cutting and binding processes.

Q: What safety features does this machine include?

A: Operator safety is prioritized with overload protection and an emergency stop function, reducing risks associated with hydraulic machinery during operation.

Q: What is the process for shape cutting with this machine?

A: Shape cutting is achieved by positioning the metal sheet within the 250 mm throat depth, selecting the appropriate die set, and activating the hydraulic punch using either the push button or foot pedal controls.

Q: What are the benefits of using this hydraulic punching machine?

A: Key benefits include high precision punching, efficient production speed, reliable safety mechanisms, and compatibility with multiple accessories for customized fabrication tasks.

Q: When was this machine manufactured, and is it suitable for import and export?

A: The QF - 820 was manufactured in 2009 and is ideally suited for export, import, and supply operations, meeting the needs of manufacturers, traders, and suppliers in China and worldwide.
